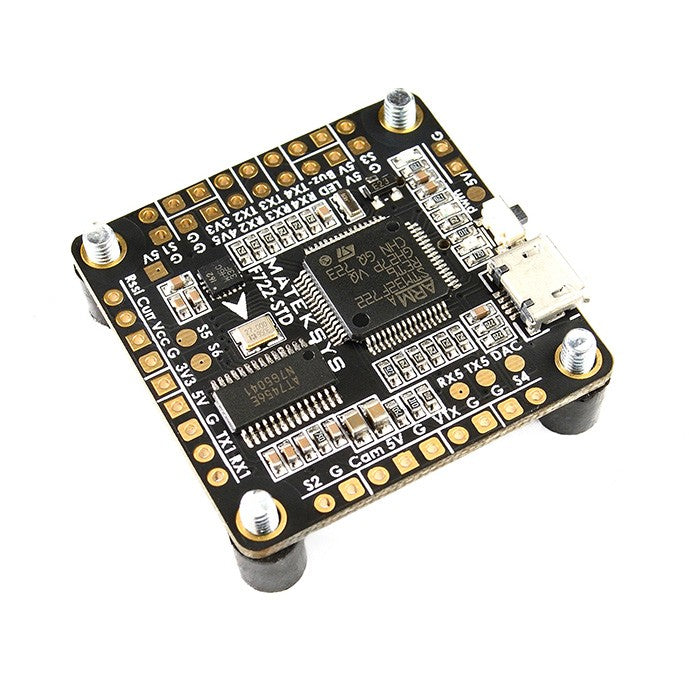

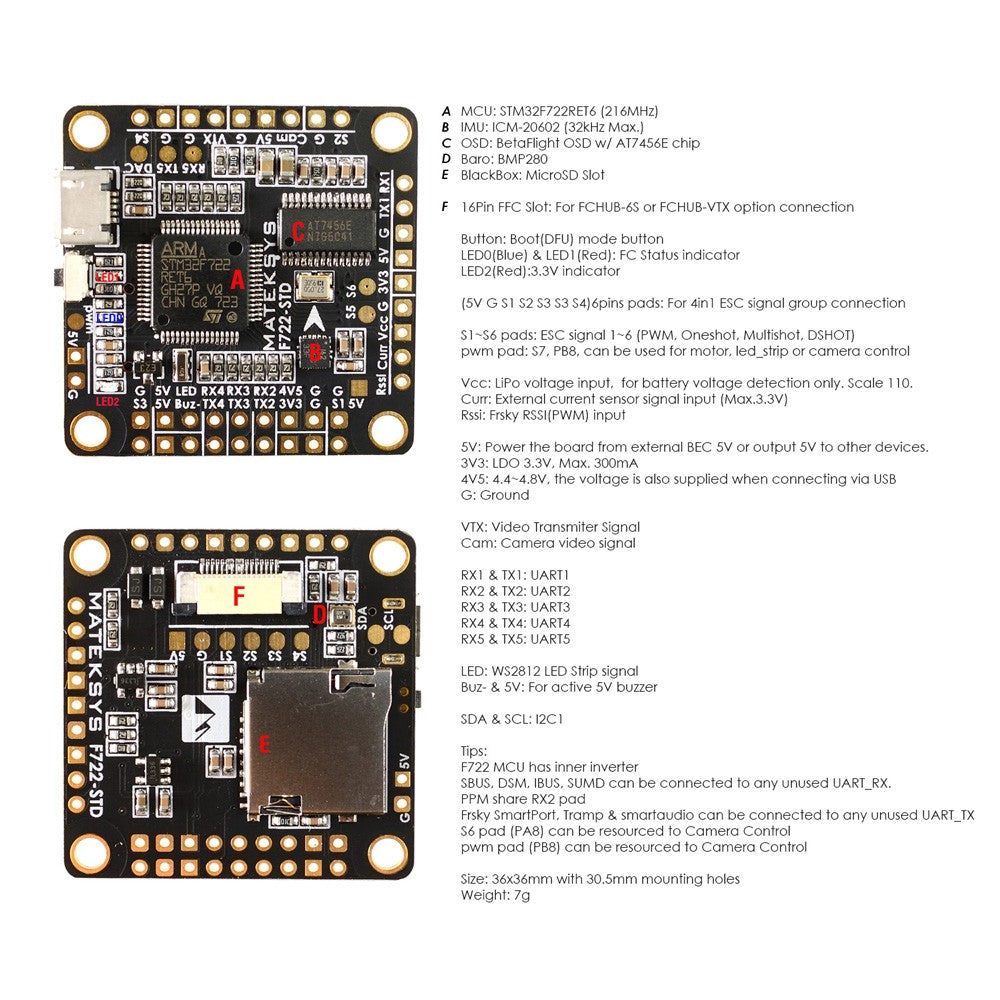

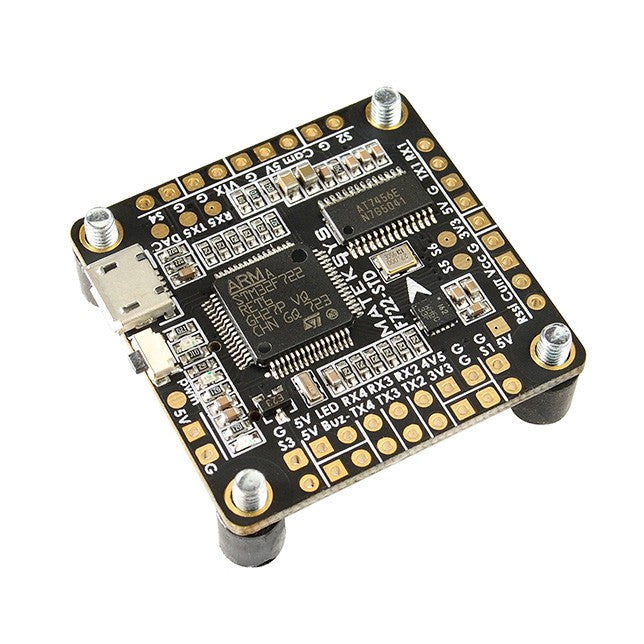

Specifications
- MCU: 216MHz STM32F722RET6
- IMU: 32K ICM20602 gyro/accelerometer (SPI)
- Baro: BMP280 (I2C)
- OSD: BetaFlight OSD w/ AT7456E chip
- Blackbox: MicroSD card slot (SD/SDHC)
- VCP, UART1, UART2, UART3, UART4, UART5
- PPM/UART Shared: UART2-RX
- Battery Voltage Sensor: 1:10
- Current Sensor: No (FCHUB-6S, FCHUB-VTX option)
- BEC 5V: No (FCHUB-6S, FCHUB-VTX option)
- LDO 3.3V: Max.300mA
- I2C1 SDA & SCL: Yes
- Camera control: Yes
- DAC: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 7x PWM / DShot outputs without conflict
- 5x UARTs
- 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
- 1x I2C1
- 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
- 1x Side-press button for BOOT(DFU) mode

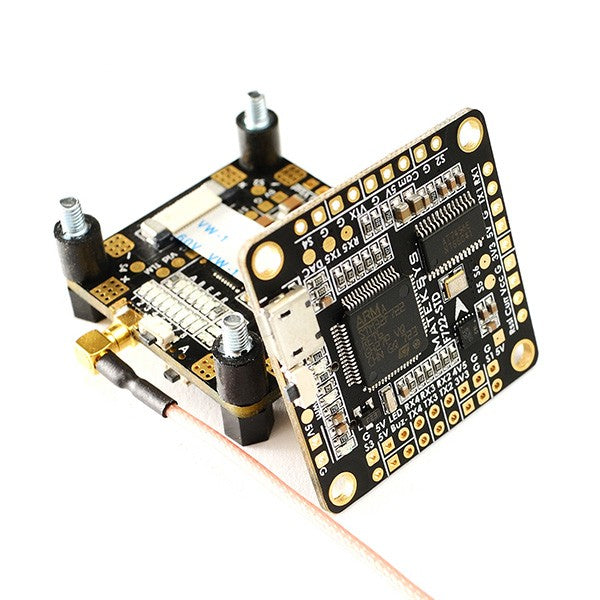

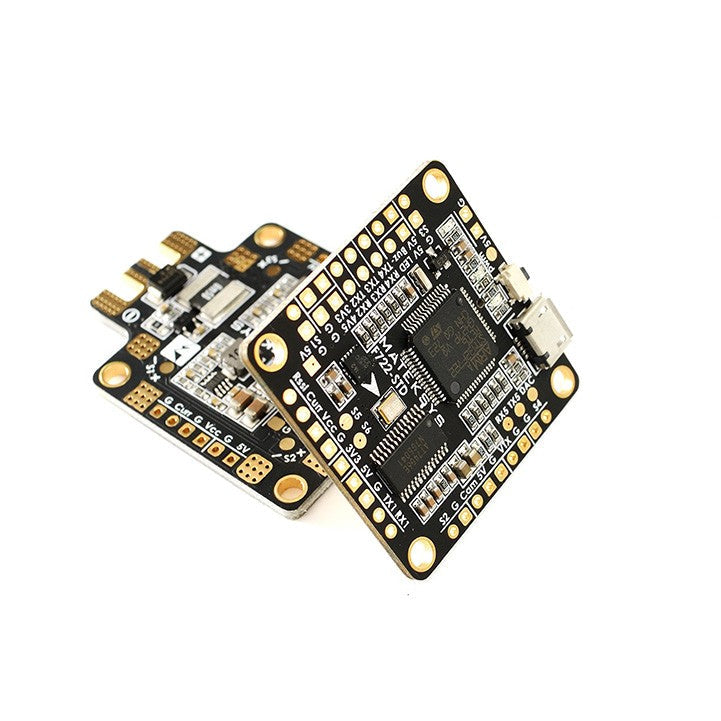

- 1x 16pin bottom mounted FFC Slot for FCHUB-6S or FCHUB-VTX connection
- 36x36mm PCB with 30.5mm mounting holes
Includes
- F722-STD Flight Controller
- 2x 0.5mm*16Pin 5cm Flexible Flat Cable
- 4x M3 Anti-vibration Standoffs
Downloads
Downloads and setup information can be found here
