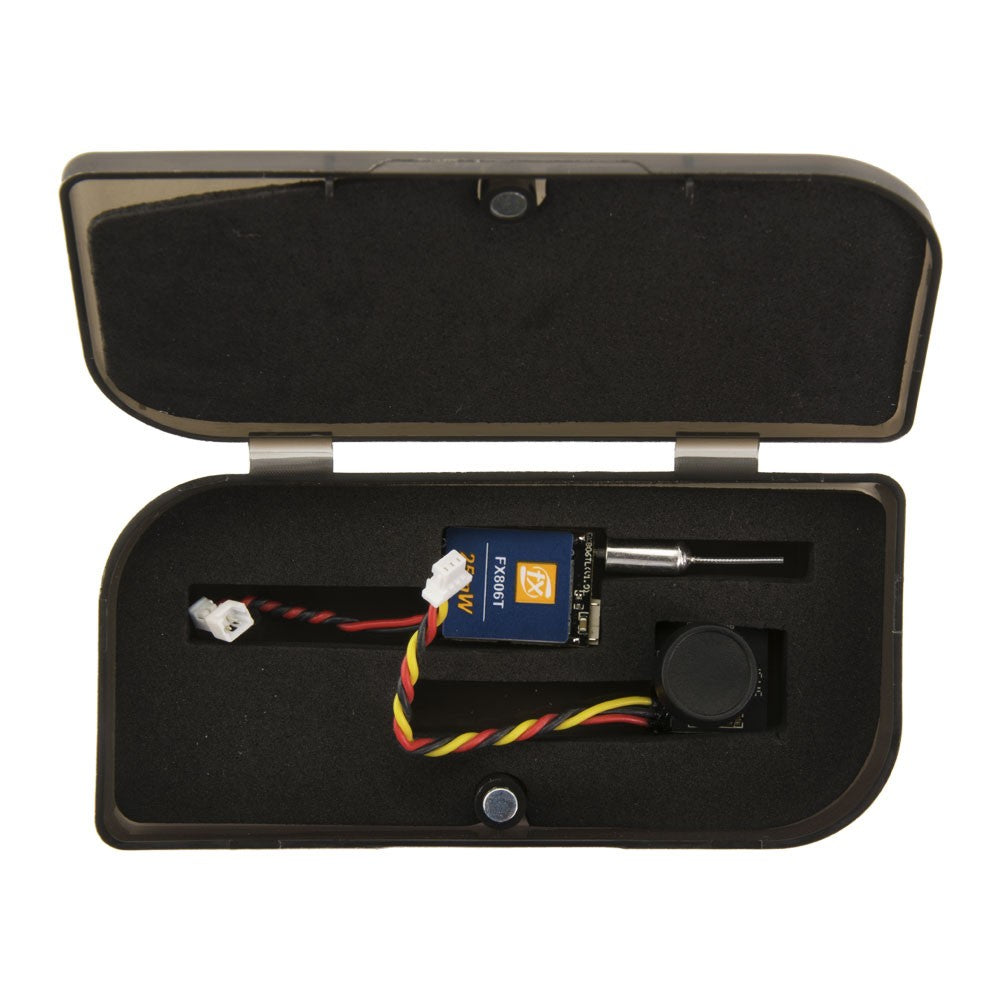

These super small FX806TC detached combos are extremely light weighing in at 4 grams without removing any extra wire length or connectors to solder. This new design will allow you to place your camera in places you never could before.

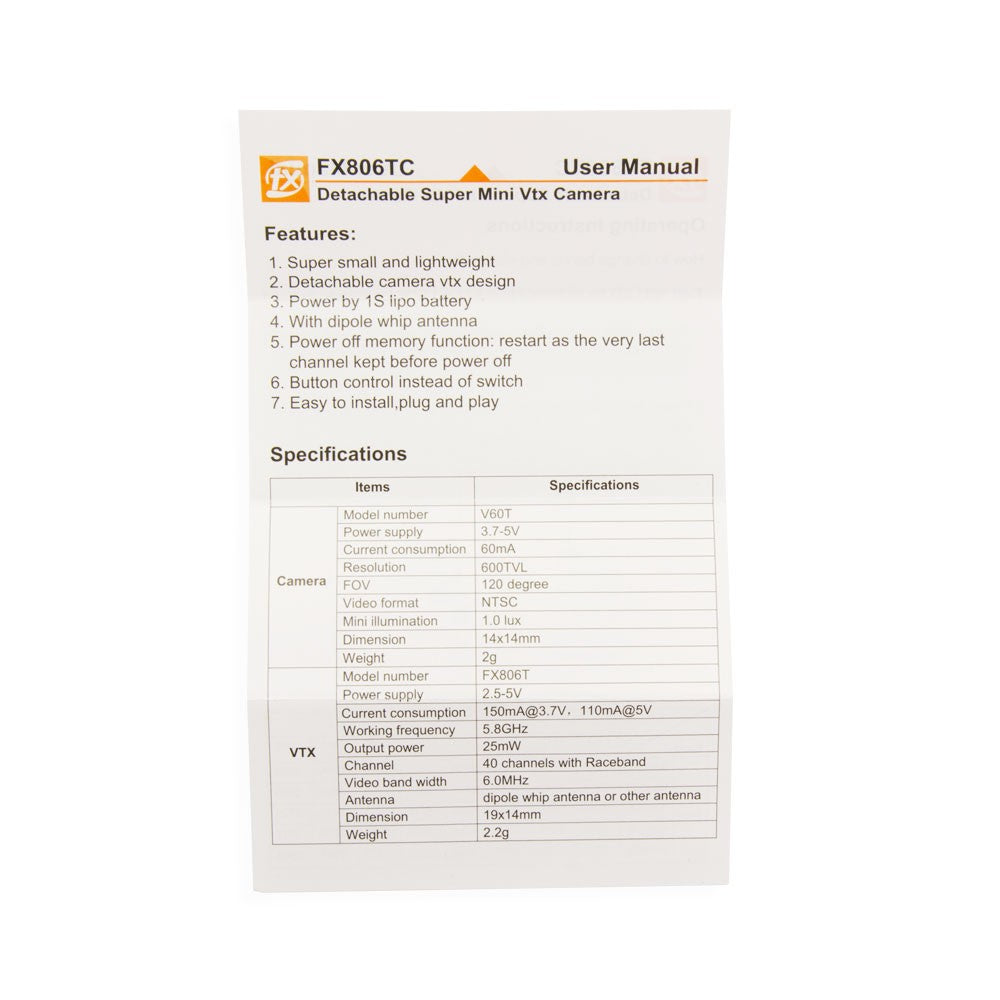

Specifications
Super small and lightweight

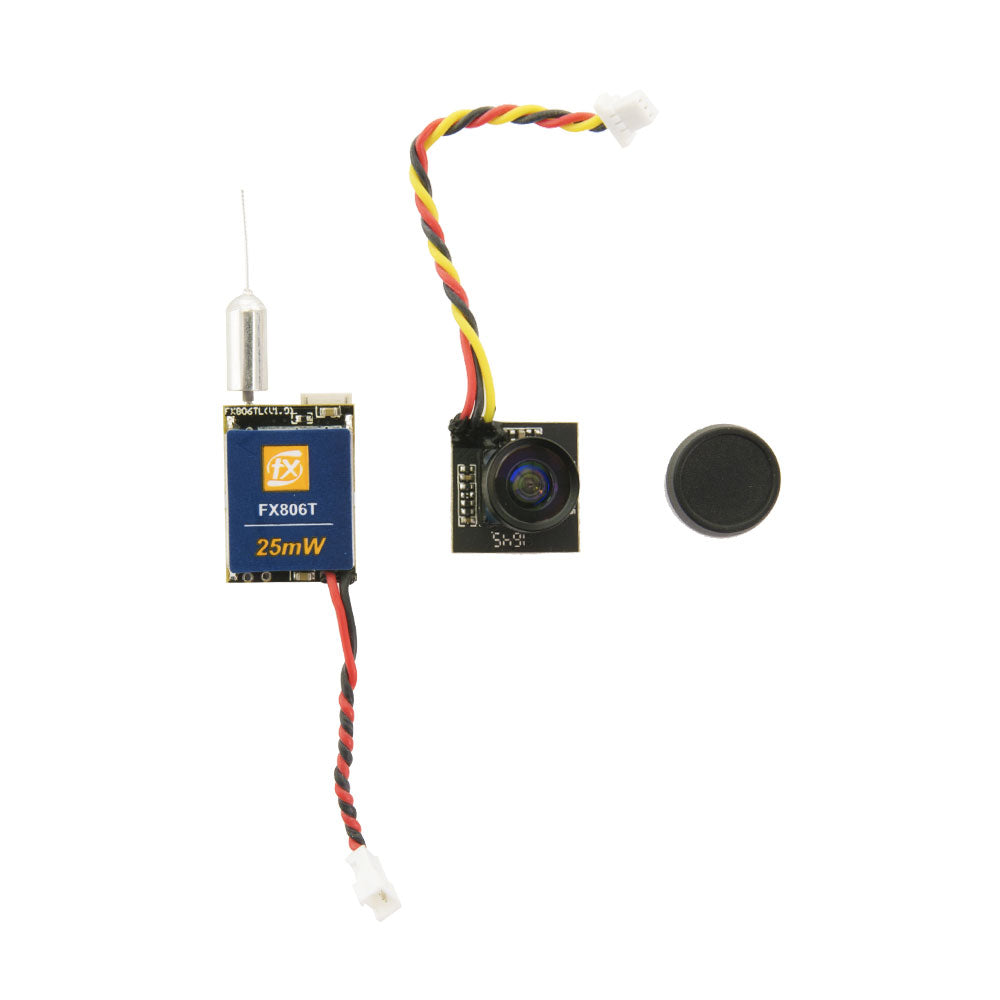

Detachable camera vtx design
Power by 1S lipo battery
With dipole whip antenna
Power off memory function: restart as the very last channel kept before power off
Button control instead of switch
Easy to install, plug and play
Camera
Model Number-V60T
Power supply 3.7-5V
Current consumption 60mA
Resolution 600TVL
FOV 120 degree
Video format NTSC
Mini illumination 1.0 lux
Dimension 14x14mm
Weight 2g

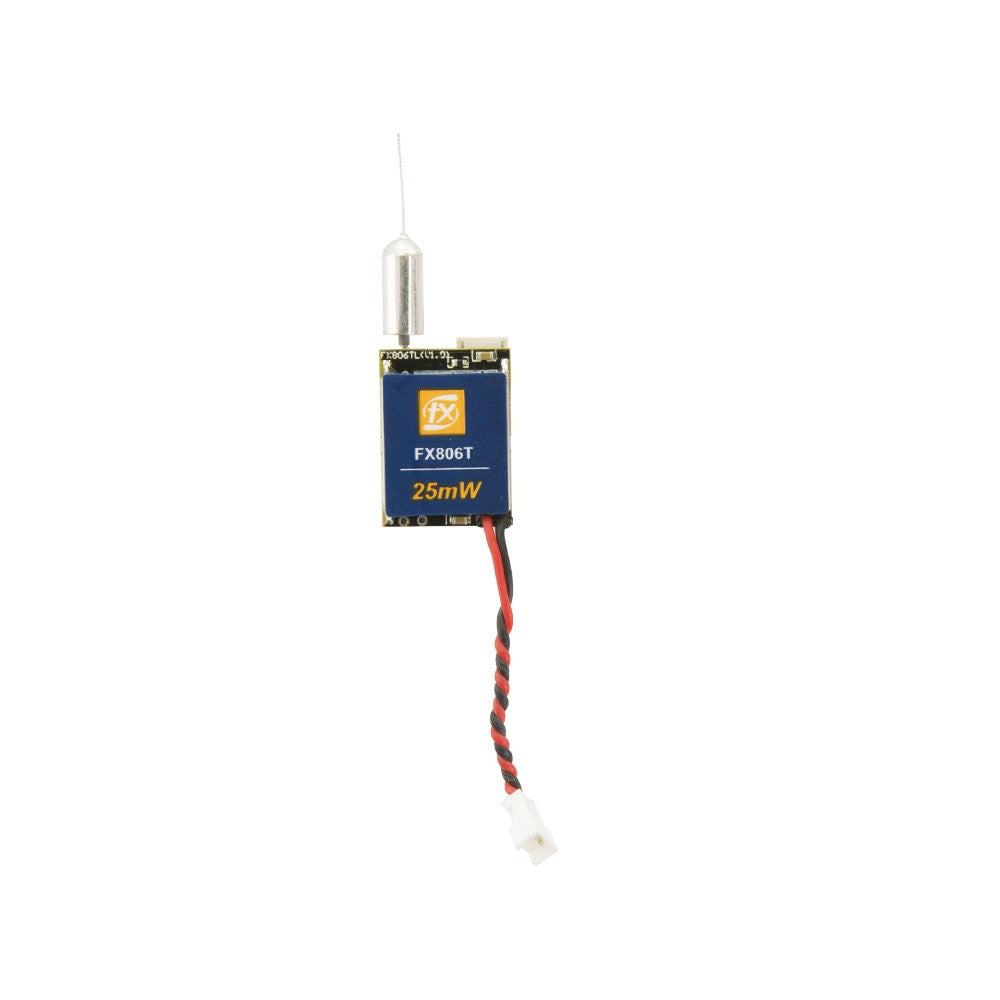

VTX
Model number FX806T
Power supply 2.5-5V
150mA@3.7V,110mA@5V
Working frequency 5.8GHz
Output power 25mW
Channel 37 channels with Raceband
Video band width 6.0MHz
Antenna dipole whip antenna or other antenna
Dimension 19x14mm

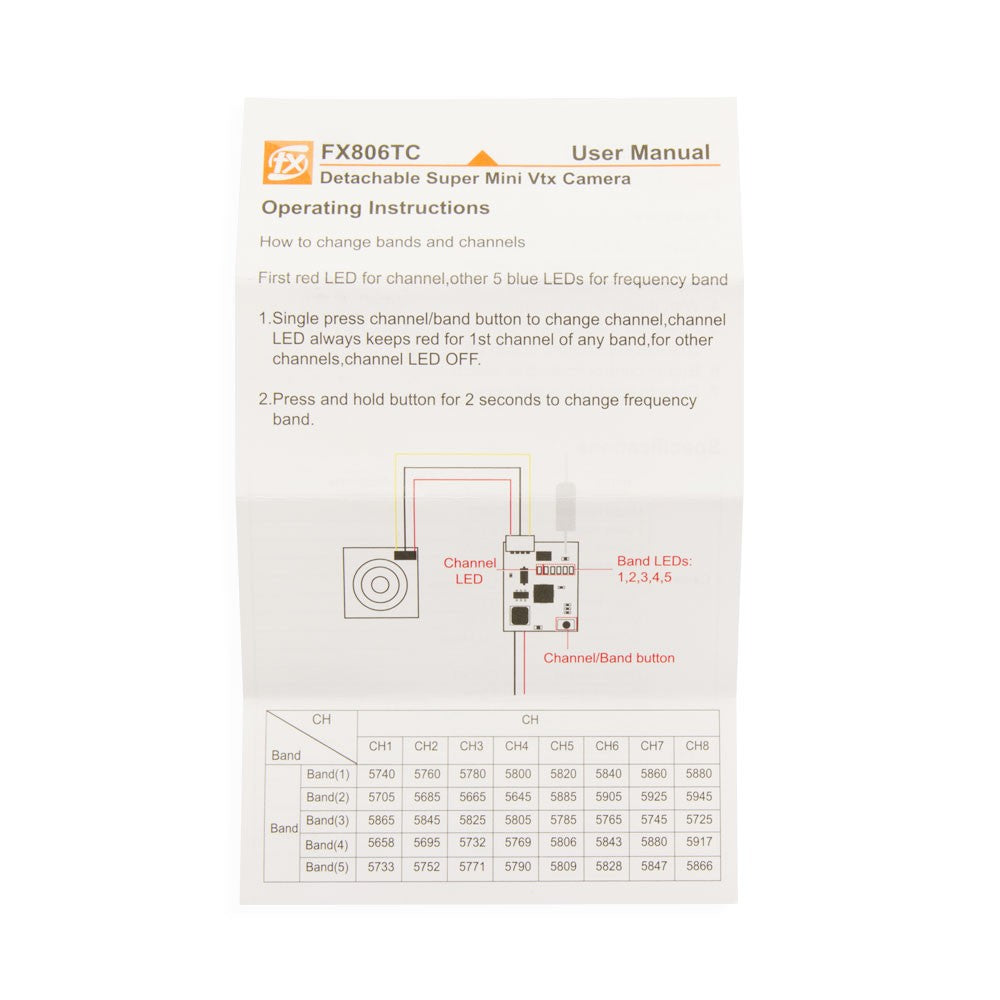

How to change channels
First red LED for channel,other 5 blue LEDs for frequency band
Single press channel/band button to change channel,channel LED always keeps red for 1st channel of any band,for other channels,channel LED OFF.
Press and hold button for 2 seconds to change frequency band.
